Cutting Mode Schematic

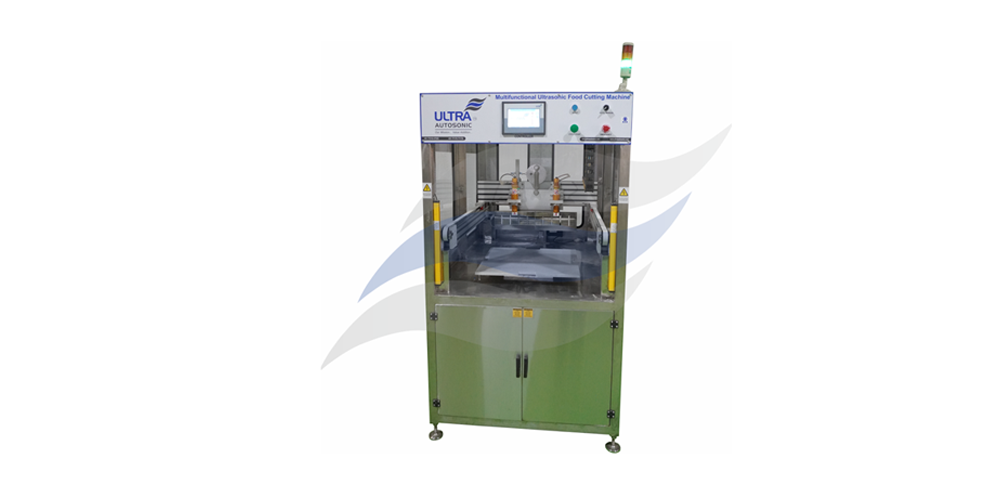

An Ultrasonic Multifunctional Cake Cutting Machine is a high-precision solution designed for clean, uniform, and efficient cutting of a wide range of bakery and confectionery products. Using advanced ultrasonic vibration technology, it delivers smooth, crumb-free cuts without damaging delicate items such as cakes, pastries, cheesecakes, brownies, and other soft or layered desserts. The machine supports multiple cutting formats,including round, square,rectangular, triangular, slab, and parallelogram portions. With adjustable cutting angles and programmable settings, it can be easily customised to meet specific product and portioningrequirements. Ideal for bakeries, confectionery manufacturers, and dairy processing units, it is a perfect solution for modern, large-scale, and automated foodproduction environments.
| Specification | Details |
|---|---|
| Operating Temperature During Cutting | 5 °C to +10 °C |
| Cutting Shape | Squares, Rectangles, Round, Triangle |
| Cutting Tray Size | Tray 600 mm × 600 mm × 60 mm |
| Capacity | High cutting efficiency and fastest with 2 knife |
| Frequency | 20KHz |
| Watts | 2KW (Each Cutter) |
| Voltage | AC 230 V, 50/60 Hz, 16 Amp |
| Cutting Length | 610mm |
| Ultrasonic knife | 305mm * 2pcs |
| Cutter Material | Titanium (Food Grade) |
| Cutting Height | Up to 70 mm |
| Power consumption | 5 KW |
| Cutter type | Standard |
| Cutting Shape & Tray Size | |
| Cutting Base Plate | 600 mm X 600 mm |

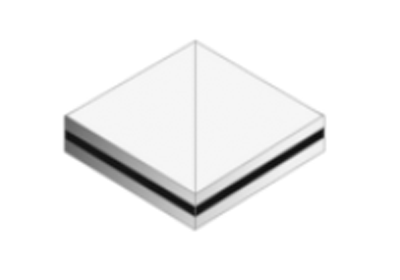

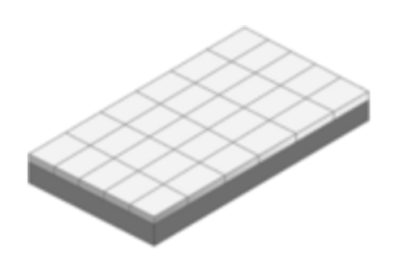

| Cutting Shape 1 | Square |

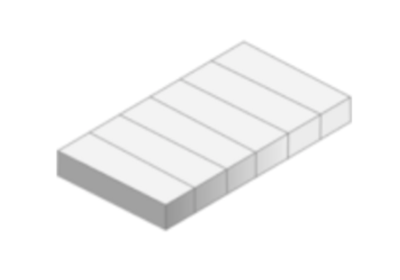

| Cutting Shape 2 | Rectangle |

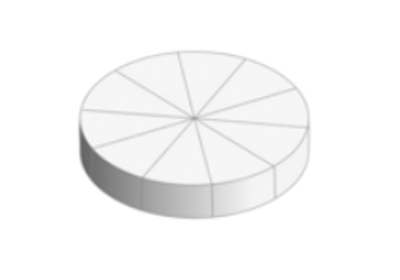

| Cutting Shape 3 | Round |
| Cutting Shape 4 | Triangle |
| Touch Panel & Controller | 7" HMI & Touch Screen Display |
| High/low voltage protection | Available |
| Safety operation | Light Curtain |
❑ Equipped with Advanced Sensor Technology
❑ Flexible Cutting Options
❑ Multiple Shape Cutting Capability
❑ Custom Cutting for Every Shape
❑ Maintains Texture & Moisture
❑ High-Speed & Automation Ready
Brownies
Chocolate Cake
Sponge Cake
