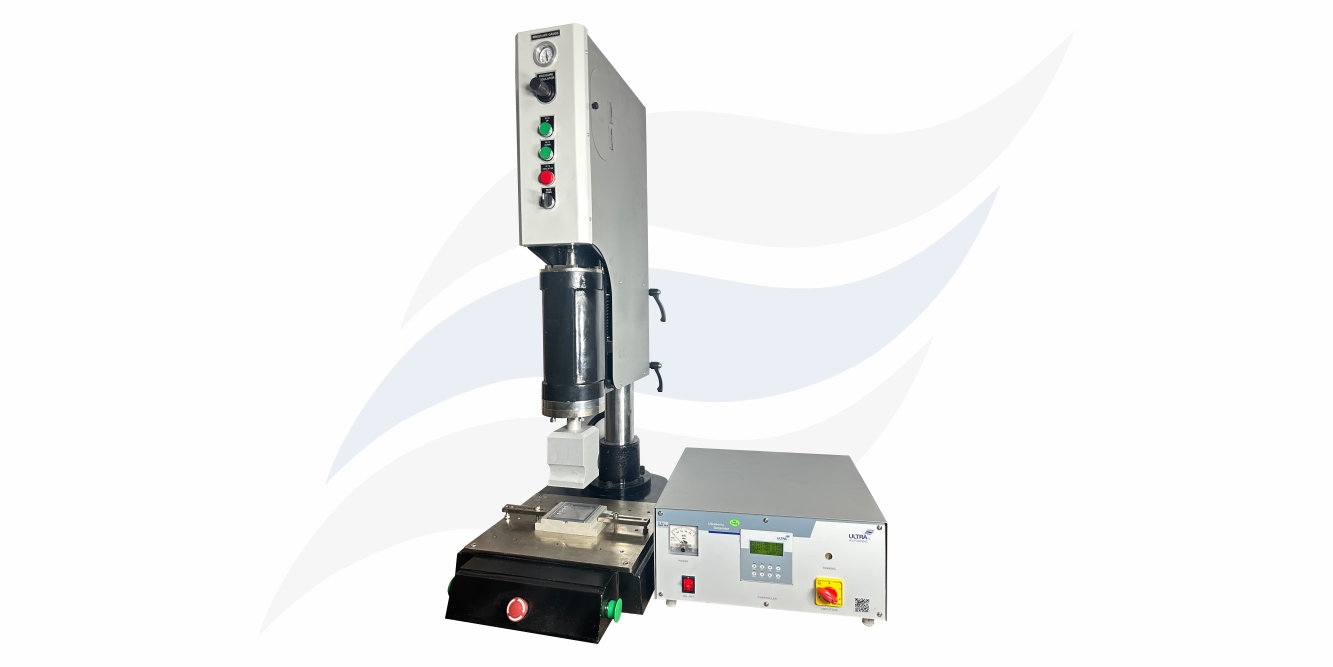

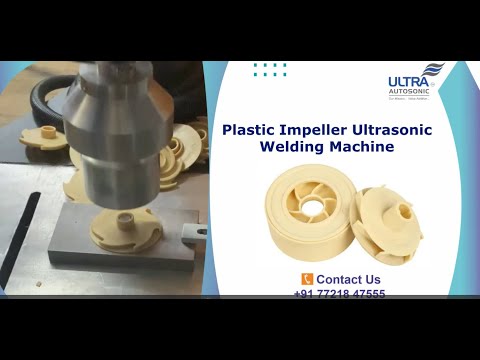

Ultrasonic Plastic
Welding Machines

❑ Ultrasonic Generator: This is the heart of the machine, producing high-frequency electrical energy which is then converted into mechanical vibrations.

❑ Transducer: These vibrations are then transmitted to the plastic parts to be welded.

❑ Amplitude Adjustment: Many machines allow adjustment of the amplitude of the ultrasonic vibrations. This helps optimize the welding process for different materials and joint configurations.

❑ Horn (Sonotrode): The horn amplifies and transfers the ultrasonic vibrations from the transducer to the plastic parts. It's designed to match the shape of the joint to ensure proper energy transmission.

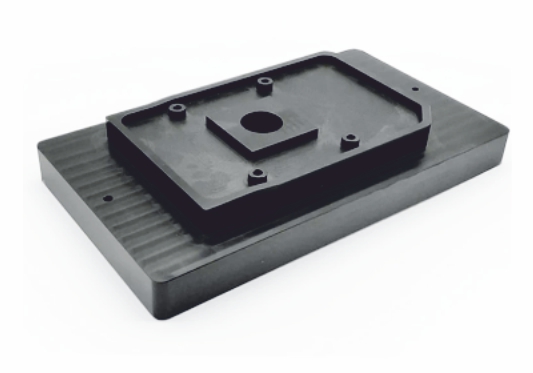

❑ Welding Fixture: This holds the plastic parts in place during the welding process.

❑ Control System: Modern machines come with sophisticated control systems that allow operators to set parameters such as welding time, pressure, and energy levels.

❑ Safety Features: These include features like emergency stop buttons, protective enclosures, and sensors to ensure the safe operation of the machine.

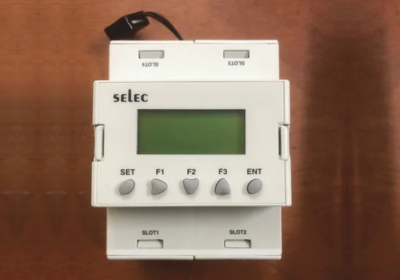

❑ User Interface: This may include digital displays, touch screens, and simple control panels.

❑ Cooling System: Ultrasonic welding generates heat, so machines often include cooling systems to prevent overheating and maintain consistent performance.
