Cutting Mode Schematic

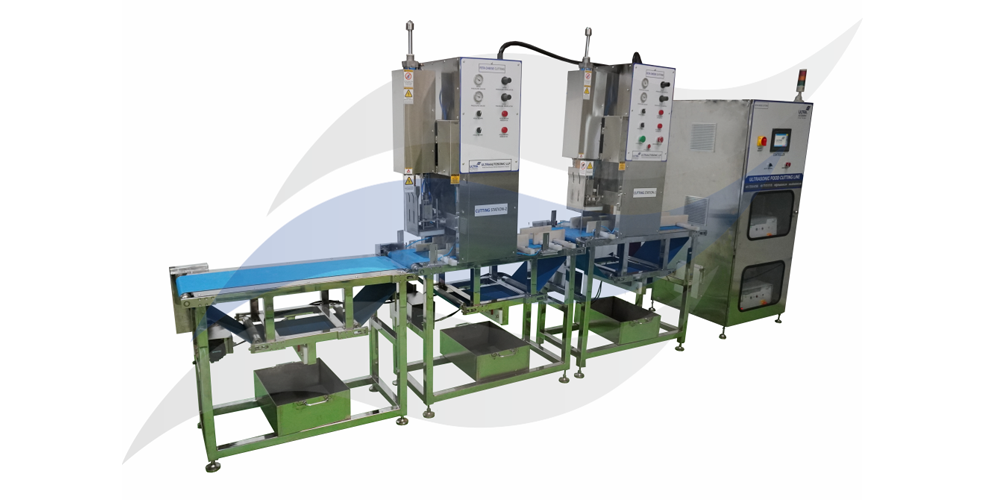

The Ultrasonic Feta Cheese Cutting Line is a specialised food processing system designed for accurate and uniform cutting of feta cheese and other soft dairy products. The machine uses high-frequency ultrasonic technology, enabling clean, recise cuts while preserving the product's texture and structural integrity. Designed for dairy processing facilities and large-scale food production environments, the machine ensures uniform portioning, minimal product wastage, high hygiene standards, and efficient continuous operation.
| Specification | Details |
|---|---|
| Cutting Tray Size | 200 X 150 X 110 mm |
| Cutting Capacity | High cutting efficiency and fastest with 1.5-2s/ Knife |
| Frequency | 20 kHz |
| Input Voltage | AC 230 V, 50/60 Hz, 16 Amp |
| Cutting Length | 150 mm |
| Ultrasonic Knife Size | 150 mm |
| Cutter Material | Titanium (Food Grade) |
| Maximum Cutting Height | 110 mm |
| Total Power Consumption | 5 KW |
| Cutter Type | Full wave length |
| Frame and Body | SS 304 & Aluminium |
| Machine Weight | 700 kg |
| Machine Base | SS Pad |
| Overall Dimensions (Approx. LXWXH) | 3000 X 1000 X 1800 mm |
| Blade Material | Titanium |
❑ Maintains Texture & Moisture
❑ High-Speed & Automation Ready
❑ Improved Hygiene & Food Safety
❑ Versatility (Fresh, Frozen, Flavoured Feta Cheese)
❑ Consistent Quality for Large-Scale Production
❑ Minimal Product Loss (Higher Yield)
❑ High Precision & Uniform Size
❑ Advanced Sensor Integration
Feta Cheese
Paneer
Cheese
