We are Manufacturer, Supplier, Exporter of Ultrasonic Plastic Welding Hand Guns from Pune, Maharashtra, India.

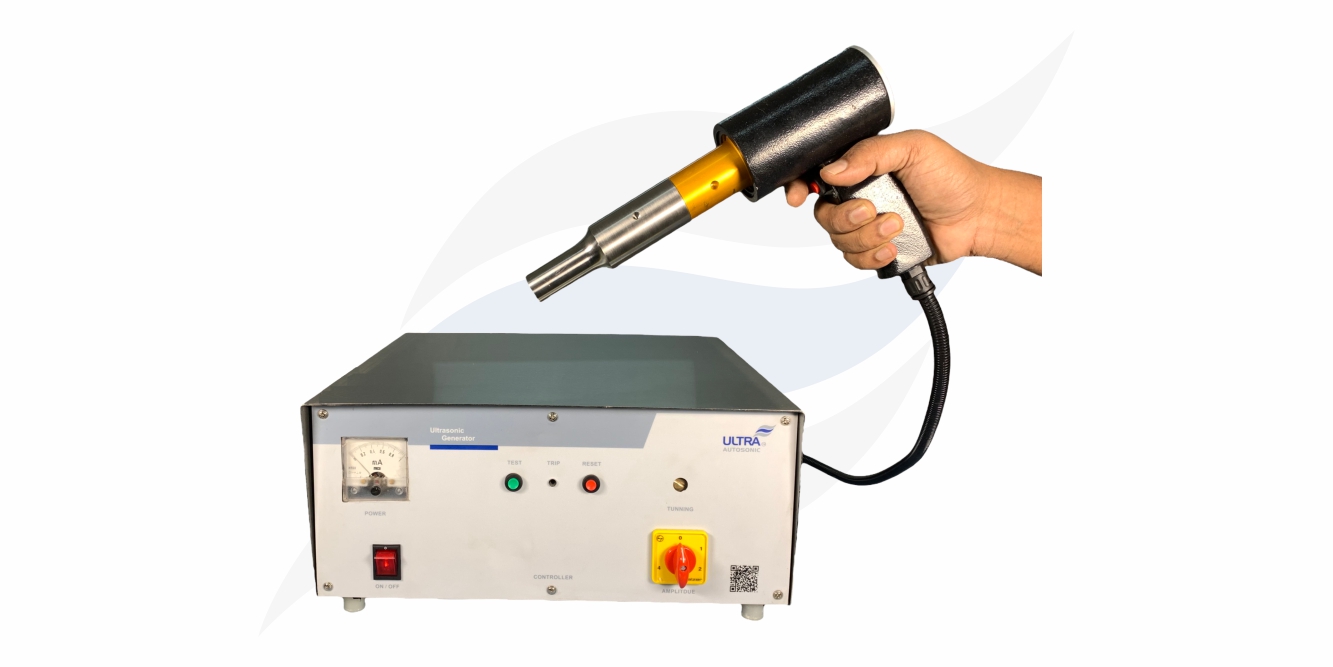

Ultrasonic plastic welding hand guns are handheld devices that use ultrasonic vibrations to weld plastic parts together. They are commonly used in manufacturing processes to join plastic parts without the need for adhesives or fasteners.

The hand gun typically consists of a power supply, a generator, a transducer, and a welding horn or sonotrode. The power supply provides electrical energy to the generator, which converts the electrical energy into high-frequency mechanical vibrations. The transducer then converts the mechanical vibrations into ultrasonic waves, which are transmitted to the welding horn or sonotrode.

The welding horn or sonotrode is designed to focus the ultrasonic waves onto the plastic parts to be welded. As the horn vibrates, it creates friction and heat between the plastic parts, causing them to melt and fuse together. The welding process is typically completed in a matter of seconds, and the resulting bond is strong and durable.

Ultrasonic plastic welding hand guns are used in a variety of industries, including automotive, medical, consumer goods, and packaging. They offer a number of advantages over other welding methods, such as lower energy consumption, faster cycle times, and the ability to weld complex shapes and parts.

MODEL-ULTRA HG Series

✔ ULTRA HG 20-1000

✔ ULTRA HG 20-1500

✔ ULTRA HG 30-600

✔ ULTRA HG 40-500


Specifications :

Frequency (kHz) 20 30 40
Power (Watt) 1000/1500 600 500
Horn Design as per the customized application
Actual Weight Approx. 18 kg Approx. 10 kg
Actual Size (L x W x H) Approx. (483 X 458 X 238) mm Approx. (360 X 213X 287) mm
Packaging Type and Size Corrugated Box and Approx. Size (581 X 556 X 336) mm Corrugated Box and Approx. Size (458 X 311 X 385) mm
Operational Requirement
Input Power Supply AC 230V 50/60Hz, 6 Amp
CVT / Stabilizers If the voltage is unstable then use CVT/Stabilizer to avoid damage
Features :

❑ Durable for harsh & demanding environments

❑ Easy to handle

❑ User friendly operation

❑ Portable

❑ Lightweight

❑ One key start, simple operation and easy operate

❑ Auto Tuned, Time mode and Power mode.

❑ Effectively balance the amplitude while frequency is locked based on the frequency and amplitude control.

❑ Power outburst mode, save energy comparing to the traditional ultrasonic hand-held welding machine.

Advantages :

❑ Durable for harsh & demanding environments

❑ Easy to handle Light weight

❑ User friendly operation

❑ Easily Portable

❑ Wide Range of Tips

❑ This is a lightweight, easy to use and low maintenance.

❑ Portable operation, fast, clean, safe and stable

❑ Accord with human body engineering design, easy to use and operate.

❑ Safe application and stable and reliable operation.

❑ It can set the minimum welding time like 1 sec.

❑ After sale service is available.

❑ It saves time. It is much faster than traditional welding methods, as virtually no time is needed for drying or curing.

❑ It saves production costs.

❑ It produces a high-quality bond and a clean, tight seal.


Applications :

❑ Plastic Panels & Parts - Cooler, Air Conditioners, Refrigerators, etc

❑ Single point Inserting

❑ Automobile bumper riveting

❑ Single welding

❑ Packing strapping welding

❑ Plastic Panels & Parts-Cooler

❑ Air Conditioners

❑ Refrigerator

❑ Electronic instruments

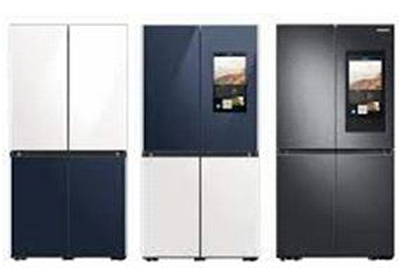

Refrigerators

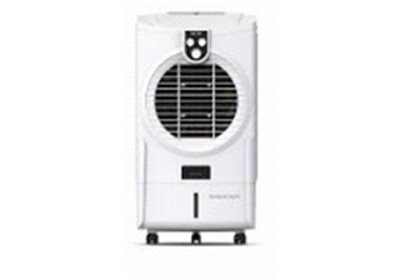

Air Cooler

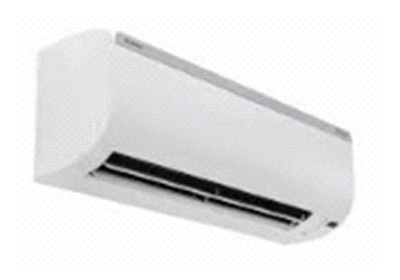

Air Conditioners
