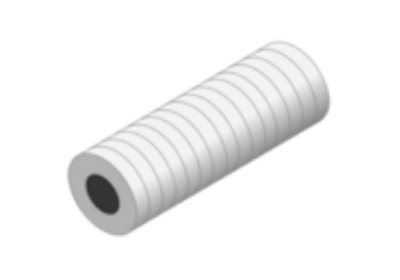

Cutting Mode Schematic

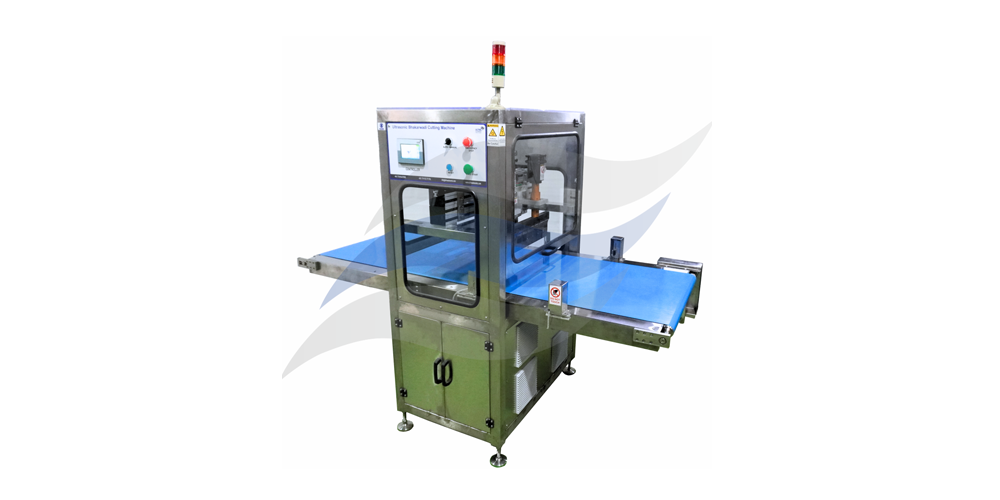

The Ultrasonic Bhakarwadi Slicing Machine is engineered to deliver precise, clean, and consistent slicing of Bhakarwadi rolls with maximum efficiency. Utilizing advanced ultrasonic technology, the machine generates high-frequency vibrations through a specialised cutting blade, ensuring smooth cuts without crushing, deforming, or damaging the product. Unlike conventional cutting methods, the ultrasonic blade prevents product from sticking, significantly reduces crumb formation, and preserves the original shape, texture, and visual appeal of every slice. This results in superior product quality, minimal wastage, and enhanced production efficiency. Designed for continuous industrial operation, the machine is manufactured from food-grade stainless steel, ensuring durability, easy cleaning, and compliance with food hygiene and safety standards. It is an ideal solution for snack manufacturers seeking high-speed, accurate, and reliable Bhakarwadi slicing with consistent results.
| Specification | Details |
|---|---|
| Application | Roll |
| Frequency | 20KHz |
| Watts | 2KW |
| Voltage | AC 230V 50/60Hz, 16Amp |
| Cutting Length | 305mm |
| Ultrasonic knife | 305mm |
| Cutter Material | Titanium (Food Grade) |
| Cutting Height | Up to 70 mm |
| Cutting Loading Stages | 1 Stage |
| Cutting Shape & Tray Size | |
| Cutting Base Plate | 305 mm |
| Cutting Shape 1 | Roll |
| Frame and body | Stainless Steel (SS) and Aluminium |
| Weight Approx. | 400KG |
| Machine Base | SS pad |
| Overall Dimensions (Approx.) | 770 mm (L) × 2000 mm (W) × 1690 mm (H) |
❑ Advanced Ultrasonic Cutting Technology
❑ Uniform Slice Thickness
❑ No Product Crushing or Deformation
❑ Non-Stick Ultrasonic Blade
❑ Reduced Crumb Formation
❑ High-Speed Continuous Operation
❑ Food-Grade Stainless Steel Construction
❑ Programmable Cutting Settings
❑ Low Maintenance Design
❑ Enhanced Product Quality
❑ Safe and Hygienic Operation
❑ Energy-Efficient Performance
❑ Suitable for Commercial & Industrial Production
