Cutting Mode Schematic
The Ultrasonic Cake Cutting Machine for Square and Rectangular Shapes features advanced ultrasonic cutting technology, enabling effortless slicing of sticky, frozen, delicate, and hard-to-cut products. It ensures clean, precise cuts for sponge cakes, cheesecakes, brownies, pies, quiches, pizzas, pastries, flapjacks, and a wide range of other food items. Designed to cut square and rectangular formats, the machine can also process half-sheet products directly from the pan. It operates in a reliable and efficient semi-automatic mode.
| Specification | Details |
|---|---|
| Operating Temperature During Cutting | 5 °C to +10 °C |
| Cutting Shape | Squares, Rectangles |
| Cutting Tray Size | Tray 600 mm × 600 mm × 60 mm |
| Capacity | High cutting efficiency and fastest with 2 knife |
| Frequency | 20KHz |
| Watts | 2KW (Each Cutter) |
| Voltage | AC 230V 50/60Hz, 16Amp |
| Cutting Length | 610mm |
| Ultrasonic knife | 305mm * 2pcs |
| Cutter Material | Titanium (Food Grade) |
| Cutting Height | Up to 70 mm |
| Power consumption | 5 KW |
| Cutter type | Standard |
| Cutting Shape & Tray Size | |
| Cutting Base Plate | 600 mm X 600 mm |

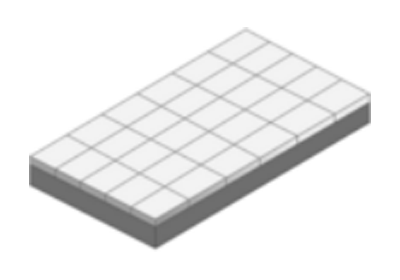

| Cutting Shape 1 | Square |

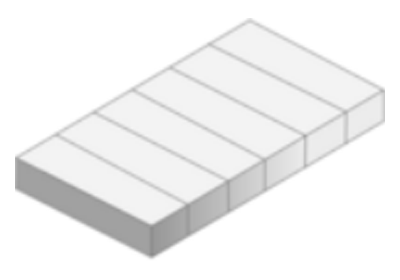

| Cutting Shape 2 | Rectangle |
| Touch Panel & Controller | 7" HMI & Touch Screen Display |
| High/low voltage protection | Available |
| Safety operation | Light Curtain |
| Frame and Body | Stainless Steel (SS) and Aluminium |
| Weight Approx. | 500KG |
| Machine Base | SS pad |
| Dimension (Approx.) | 1200mm L X 1200mm W x 1600mm H |
❑ Advanced ultrasonic cutting technology for clean, smooth, and precise slicing.
❑ Ideal for sticky, frozen, delicate, and difficult-to-cut food products.
❑ Designed specifically for square and rectangular cakes and food items.
❑ Capable of cutting half-sheet products directly from the pan.
❑ Maintains product shape without crumbling or smearing.
❑ Suitable for a wide range of products, including cakes, pastries, and desserts.
❑ Semi-automatic operation for consistent performance and higher productivity.
❑ Food-grade construction for hygienic and safe food processing.
❑ Low maintenance and easy-to-operate design.
Sponge Cake
Sponge Cake
Cheese Cake
Cake
