We are Manufacturer, Supplier, Exporter of Ultrasonic PP Box Welding Machines (Ultrasonic Polypropylene Box Welding Machines / Ultrasonic Corrugated Box Welding Machines / Welders) from Pune, Maharashtra, India.

An Ultrasonic PP Box Welding Machines (Ultrasonic PP Box Welders) is a type of welding machine that uses high-frequency sound waves to join two pieces of polypropylene (PP) plastic together. The process involves applying pressure to the two pieces of PP plastic to be joined, then introducing ultrasonic vibrations that cause the molecules in the plastic to rub against each other, generating heat and melting the plastic at the interface. As the plastic cools and solidifies, it forms a strong, permanent bond.

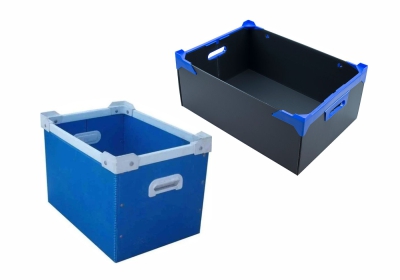

PP Box Welding Machines are commonly used in the manufacturing of various plastic products, such as plastic containers, packaging materials, and automotive components. The advantages of using ultrasonic welding include fast processing times, consistent weld quality, and the ability to weld intricate shapes and designs.

There are different types of ultrasonic PP box welding machines available, including handheld devices, benchtop machines, and fully automated production lines. The choice of machine depends on the specific application and production requirements.

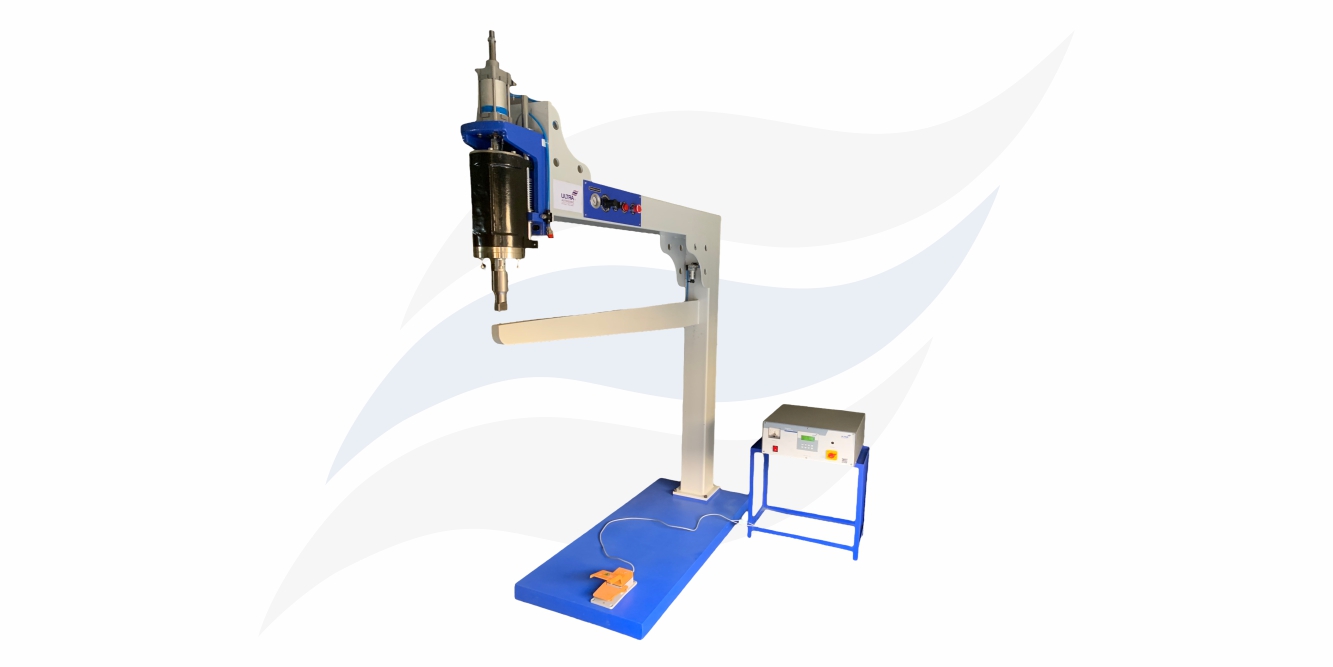

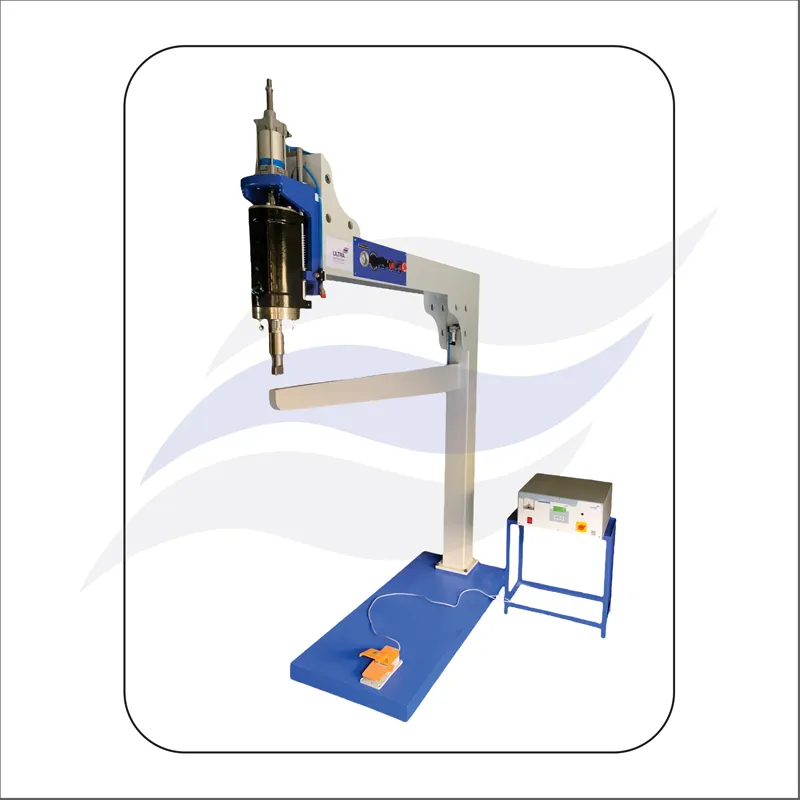

✔ ULTRA PPBX H1 20-2000

Specifications :

Frequency (kHz) 20
Power (Watt) 2000
Horn Design as per the customized application
Actual Weight Approx. 150 kg
Actual Size (L x W x H) Approx. (1702 X 610 X 2312) mm
Packaging Type and Size Open Packing and Approx. Size (1702 X 610 X 2312) mm
Operational Requirement
Input Power Supply AC 230V 50/60Hz, 16Amp
CVT / Stabilizers If the voltage is unstable then use CVT/Stabilizer to avoid damage
Working Pressure 2 to 10 bars (Air Compressor required 1Hp 50Ltr)
Features :

❑ This machine can weld one, two or three welding spots together which make it production friendly.

❑ We can design frame of the machine as per customer specification like Multi Head fixed or movable.

❑ New frame developed by us is very robust and user friendly.

❑ Ultrasonic system used in these machines already proven.

❑ All components used in this system are international class.

Advantages :

❑ Strength can bear large pulling force, high pressure

❑ Quality No water leakage, gas leakage, can close welding

❑ Not pale, not glue overflow

❑ Economy No screws, glue, reduce the artificial, low cost.

❑ No Scratch guarantee for packed items.

❑ No rejection of packed items

❑ Better aesthetic looks

❑ No corrosion of joints means healthy packaging

❑ Low running costs

❑ Can weld one or two welding spots together

Applications :

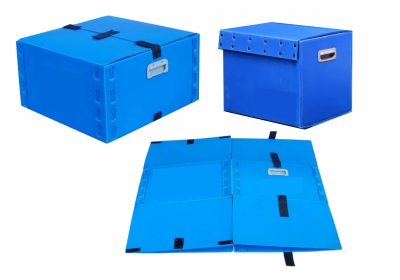

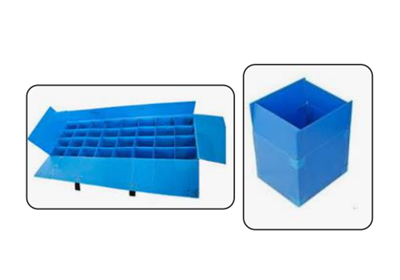

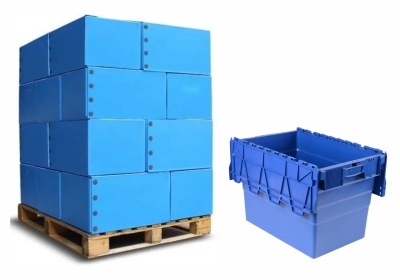

❑ PP Corrugated Box

❑ PP Sheets Joining

❑ Riveting PP Sheets

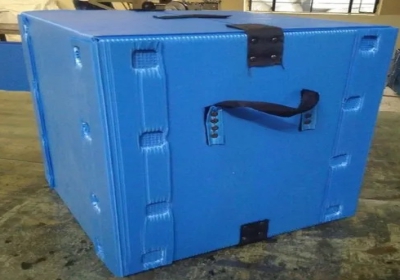

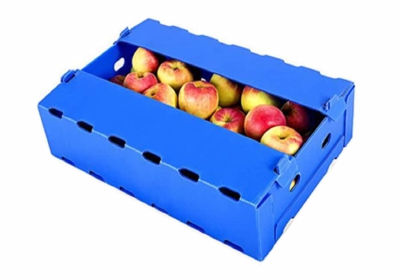

PP Corrugated Box
