Cutting Mode Schematic

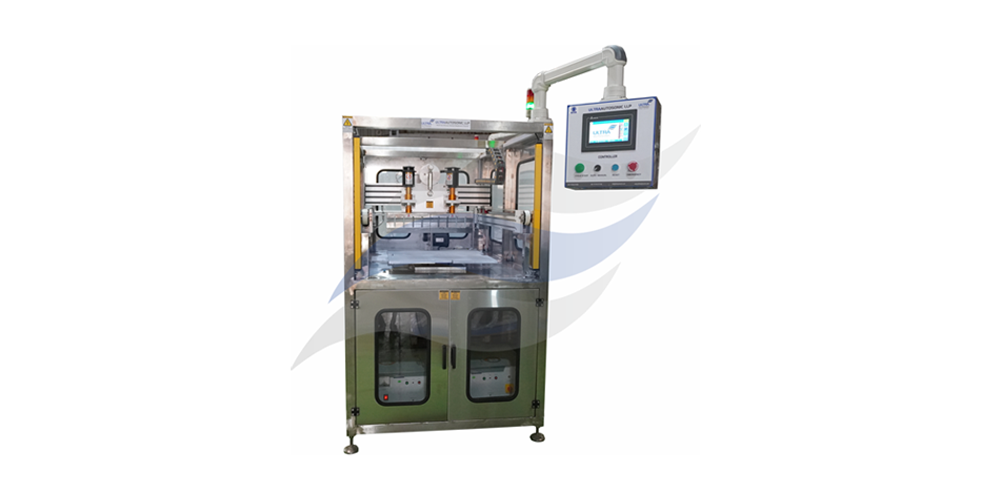

The Multifunctional Ultrasonic Cake Cutting Machine is a high-precision food cutting solution designed for clean, smooth, and efficient cutting of cakes, pastries, brownies, cheesecakes, and other soft bakery products. Using advanced ultrasonic technology, it ensures crumb-free cutting with minimal product wastage. The machine supports multiple cutting shapes and sizes, making it ideal for bakeries, confectionery units, and automated food production lines. Designed for versatility, the machine can produce multiple cutting patterns and portion sizes, including square, rectangular, triangular, and parallelogram shapes.
| Specification | Details |
|---|---|
| Operating Temperature During Cutting | 5 °C to +10 °C |
| Cutting Shape | Squares, Rectangles, parallelogram Triangle |
| Cutting Tray Size | Tray 600 mm × 600 mm × 60 mm |
| Capacity | High cutting efficiency and fastest with 2 knives |
| Frequency | 20KHz |
| Watts | 2KW (Each Cutter) |
| Voltage | AC 230V 50/60Hz, 16Amp |
| Cutting Length | 610mm |
| Ultrasonic knife | 305mm * 2pcs |
| Cutter Material | Titanium (Food Grade) |
| Cutting Height | Up to 70 mm |
| Power consumption | 5 KW |
| Cutter type | Standard |
| Cutting Shape & Tray Size | |
| Cutting Base Plate | 600 mm X 600 mm |
| Cutting Shape 1 | Square |
| Cutting Shape 2 | Rectangle |
| Cutting Shape 3 | Parallelogram |
| Cutting Shape 4 | Triangle |
| Touch Panel & Controller | 7" HMI & Touch Screen Display |
| High/low voltage protection | Available |
| Safety operation | Light Curtain |
❑ Equipped with Advanced Sensor Technology
❑ Flexible Cutting Options
❑ Multiple Shape Cutting Capability
❑ Custom Cutting for Every Shape
❑ Maintains Texture & Moisture
❑ High-Speed & Automation Ready
Brownies
Sponge Cake
Chocolate Cake
