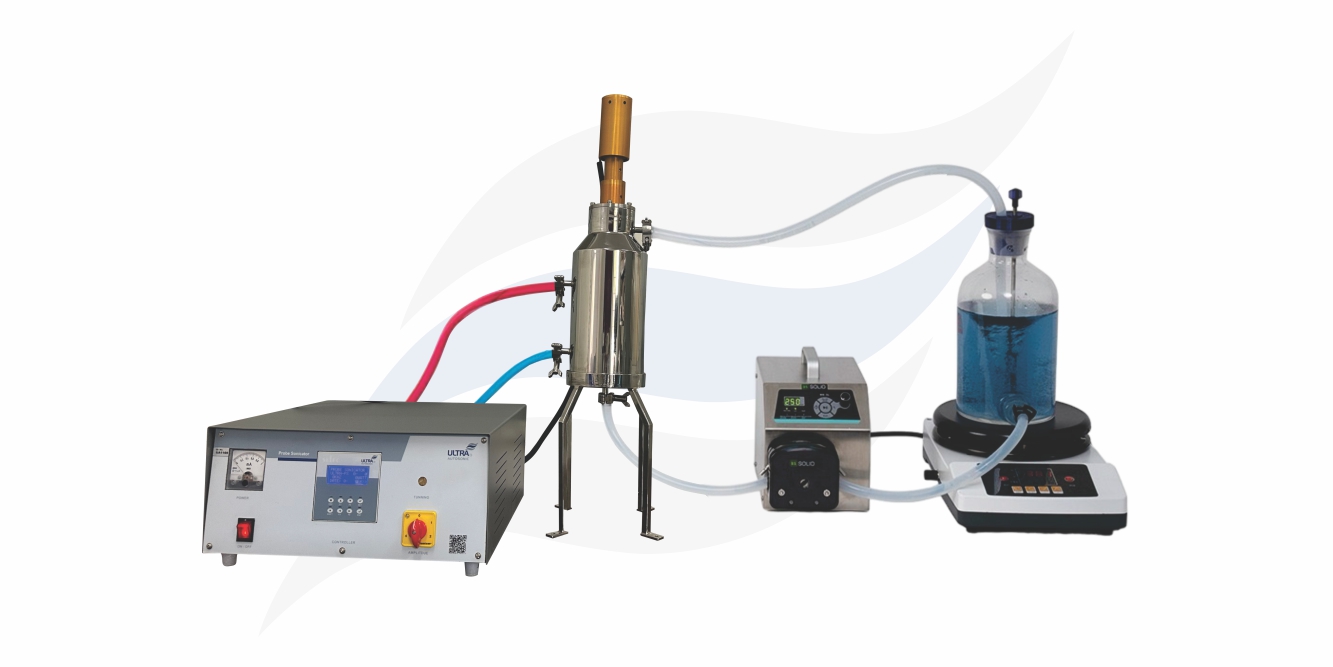

The Ultrasonic Flow Cell Reactor is an advanced continuous-flow processing system designed for efficient sonochemical reactions, mixing, emulsification, dispersion, homogenization, and particle size reduction. It uses high-intensity ultrasonic waves to generate controlled cavitation within the flowing liquid, enhancing mass transfer and accelerating chemical and physical processes. Designed for laboratory research, process development, and pilot-scale production, the reactor offers precise control over ultrasonic power, flow rate, and temperature, enabling consistent and reproducible processing conditions.
Its modular and scalable design allows easy integration with existing processing systems and makes it suitable for a wide range of applications in pharmaceuticals, chemicals, biotechnology, nanomaterials, and advanced material processing.
Ultrasonic Flow Cell Reactor Ultrasonic Flow Reactor Ultrasonic Continuous Flow Reactor Continuous Flow Sonicator Ultrasonic Reactor Flow Cell Sonicator Ultrasonic Continuous Flow System Flow Cell Reactor Industrial Ultrasonic Flow Reactor Ultrasonic Inline Reactor Inline Ultrasonic Reactor Ultrasonic Liquid Flow Reactor Ultrasonic Processing Reactor Ultrasonic Chemical Reactor Ultrasonic Cavitation Reactor Sonochemical Flow Reactor
✔ ULTRA UFCR 20-150
✔ ULTRA UFCR 20-250
✔ ULTRA UFCR 20-500
✔ ULTRA UFCR 20-750
✔ ULTRA UFCR 20-1000
✔ ULTRA UFCR 20-2000
✔ ULTRA UFCR 20-2500
✔ ULTRA UFCR 20-3000
| Frequency (kHz) | 20 | |||
|---|---|---|---|---|
| Power (Watt) | 150,250,500,750,1000,2000,2500,3000 | |||
| Probe | Design as per the customized application | |||
| Actual Weight | Approx. 22 kg | Approx. 30 kg | ||
| 2 Box | Generator | Flow Cells | ||
| Actual Size (L x W x H) | Approx. (483 X 458 X 238) mm | Approx. (311 X 311 X 703) mm | ||
| Packaging Type and Size | Corrugated Box and Approx. Size (581 X 556 X 336) mm | Corrugated Box and Approx. Size (409 X 409 X 801) mm | ||
| Operational Requirement | ||||
| Input Power Supply | AC 230V 50/60Hz, 16Amp | |||
| CVT / Stabilizers | If the voltage is unstable then use CVT/Stabilizer to avoid damage | |||
❑ Continuous Flow Operation.
❑ Enhanced Mixing and Mass Transfer.
❑ Precise Control over Reaction Conditions.
Flow Cell Reactor Application List
❑ Accelerate Chemical Reaction
❑ Alcohol
❑ Aloe vera Gel
❑ Beverages
❑ Chocolate Emulsion
❑ Compact Powder
❑ Cornstarch
❑ Cosmetic Powder
❑ Cosmetic Product
❑ Cumin Oil
❑ Face Cream
❑ Fragrance Oil
❑ Herbal Oil
❑ Honey & Cream
❑ Liquid Syrup
❑ Lotion
❑ Mayonnaise
❑ Mint Oil
❑ Organic Cream
❑ Palm Oil
❑ Protein Extraction
❑ Saffron Extraction
❑ Solid In Water
❑ Soybean Powder
❑ Tomato Sauce
