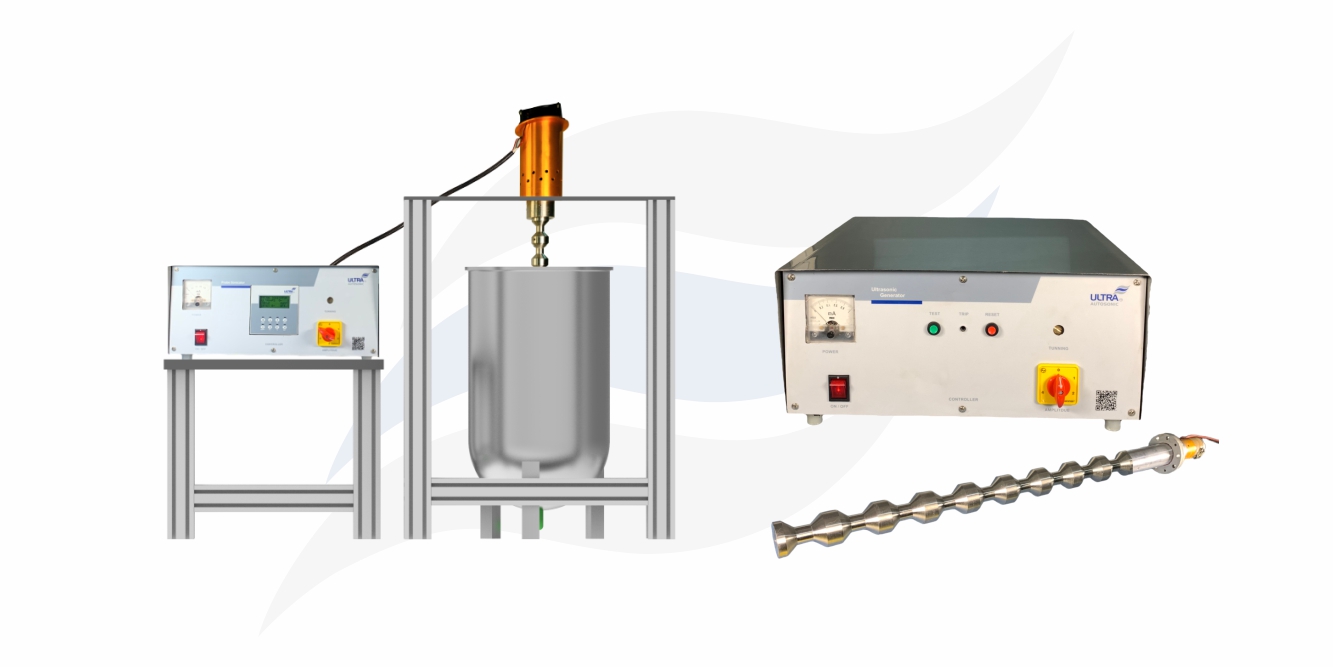

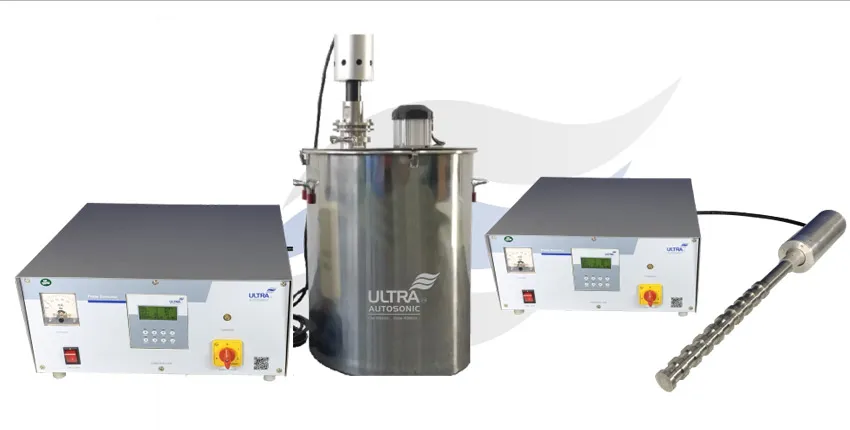

An industrial Probe Sonicators is a device used for ultrasonic homogenization, dispersion, and emulsification in industrial settings. It consists of a high-frequency ultrasonic generator, a probe (also called a horn), and a power supply.
The probe is immersed in a liquid or other material being processed, and the ultrasonic waves generated by the device create cavitation bubbles that rapidly expand and collapse. The resulting high energy and shear forces can break down particles, create emulsions, and disrupt cell membranes.
Industrial Probe Sonicators are used in a variety of industries, including pharmaceuticals, biotechnology, food and beverage, chemical processing, and materials science. They can be used for applications such as sample preparation, cell lysis, particle size reduction, and homogenization of liquids and slurries.
The choice of probe and ultrasonic frequency will depend on the specific application and material being processed. Industrial Probe Sonicators are often designed for continuous operation and may have features such as temperature control and automatic frequency tuning.
✔ ULTRA IPS 20-2000
✔ ULTRA IPS 20-2500
✔ ULTRA IPS 20-3000
| Frequency (kHz) | 20 | |||
|---|---|---|---|---|
| Power (Watt) | 2000/2500/3000 | |||
| Probe / Sonotrode (mm) | ∅35, ∅40, ∅54 mm | |||
| Actual Weight | Approx. 36 kg | |||
| Actual Size (L x W x H) | Approx. (556 X 556 X 238) mm | |||
| Packaging Type and Size | Wooden Box and Approx. Size (654 X 654 X 238) mm | |||
| Operational Requirement | ||||
| Input Power Supply | AC 230V 50/60Hz, 16Amp | |||
| CVT / Stabilizers | If the voltage is unstable then use CVT/Stabilizer to avoid damage | |||
❑ Precise and convenient digital displaying and controlling.
❑ Digital display can show you the output power directly.
❑ Pulse width and interval time can be separately set.
❑ It is timer controlled and can switch off automatically when the set time is run off. You can turn it off when necessary.
❑ Various kinds of optional tips are available.
❑ Wide Range of Tips
❑ Temperature control: You can set the maximum limit of temperature after crossing that limit the working of Sonicator will automatically stop preventing degradation of sample.
❑ Probe material Titanium Alloys
❑ Variable Amplitude
❑ Touch Screen Display
❑ Overload Protection
❑ Power Protection
❑ High-Temperature Protection
❑ High Voltage Protection & Dry run protection
❑ We provide different types of protection options. Which will help to increase the life of the machine.
❑ Large screen LCD
❑ Full intensity control: Intensity is controlled from 1-100% giving a greater degree of resolution and ability to pinpoint the amplitude needed to effectively process sample.
❑ Programmability: Parameters like total time, Pulse on Time, Pulse Off Time can be adjusted
❑ Pulse mode: Adjustable Pulse on and Off time mode to reduce the heat rise in the temperature sensitive samples
❑ Temperature monitoring: Integrated temperature control to prevent overheating of the sample
❑ Titanium probe will not react with any liquid.
❑ We can control the power through the amplitude.
❑ Customer will get the display option as per his requirement.
❑ Prepare Tissue
❑ Accelerate Enzymatic Reactions
❑ Disperse Solids
❑ Dissolve Powders
❑ Extract DNA / RNA
❑ Prepare Emulsions
❑ Accelerate Chemical Reactions
❑ Degassing of Liquids
❑ Dissolve Tablets
❑ Extract Proteins
❑ Immiscible Liquids
❑ Stimulate Bacterial Activity
❑ De-agglomerate Powders
❑ Emulsify Cosmetics
❑ Emulsify Liposomes
